Delivery trucks, semis, and heavy equipment back into loading docks hundreds of times per year. The pit catches water and road salt. The apron edge takes steel dock plates dragging across it. Concrete that performs in a parking lot fails at a dock in five years unless it is engineered for the actual loads and abuse. Laval Concrete designs and pours loading dock slabs with the reinforcement, slope, and steel edge protection they need. Free written estimate on every project.
Why Loading Dock Concrete Fails Without the Right Spec
A standard parking lot slab is built to handle distributed traffic loads across a wide area. A loading dock concentrates all the force into a small footprint where the truck's rear wheels land, over and over. Add steel dock plates dragging across the leading edge, winter freeze-thaw cycles, and standing water pooling at the pit, and a parking-lot spec slab spalls and fails in five years. The dock slab has to be thicker, reinforced differently, and sloped to shed water instead of trap it.
We specify dock concrete with extra thickness at the apron, rebar positioned to handle the concentrated wheel loads, a steel edge angle cast into the leading edge to protect against dock-plate wear, and a slope that drains away from the pit toward the parking lot or a catch basin. The pit itself is engineered to handle the water it collects from the open dock door, not to become a pond from reverse-sloped apron runoff.
This same engineering discipline applies across our parking lot concrete work, our site concrete services, and the equipment pads we pour for HVAC units and generators. Each concrete type has its own spec.
Recent work
How it works
Building a Loading Dock Slab Step by Step
Assess truck loads and site conditions
We measure the pit footprint, identify the truck types (delivery, semi, heavy equipment), confirm the dock-leveler model if one exists, and plan the apron slope and drainage path before any forms go down.
Prepare base and set drainage
The pit is excavated to depth, the apron base is compacted and graded, and any subsurface drainage or pit sump lines are installed before the concrete forms are set.
Form, reinforce, embed steel
Pit walls and apron edges are formed to the engineered dimensions, rebar is tied at the specified spacing with extra reinforcement at the wheel-load zone, the steel edge angle is positioned and welded to embed studs, and dock-leveler anchor bolts are set.
Pour, finish, slope, cure
Concrete is placed and consolidated into the forms, the apron surface is finished for traction, the slope is struck to drain away from the pit, and the slab is cured per spec before the dock-leveler is installed.
When docks fail
Repairing a Failed Loading Dock Means Finding the Root Cause
A spalled dock edge looks like a concrete problem, but the real issue is usually engineering. The original slab was too thin, the reinforcement was undersized, the apron sloped the wrong direction, or the steel edge angle was never installed. Patching the spall without fixing the cause means the dock fails again in a year or two.
We assess failed docks by looking at the slab thickness, the reinforcement pattern, the slope direction, and the edge condition. If the slab is sound and only the edge is spalled, we cut out the damaged section, add the steel edge angle that should have been there, and pour a repair that matches the original spec. If the whole slab is undersized or reverse-sloped, we recommend a full replacement because a patch will fail again. Our site concrete repair work follows the same principle: fix the cause, not just the symptom.
We also coordinate with commercial concrete contractors and dock-leveler suppliers to make sure the repair integrates cleanly with the rest of the facility. A dock is not an island.
Slab specs, steel edges, dock-leveler embeds, drainage and when to repair vs replace.
Because they take concentrated repeat loads at a single point (the truck rear-wheel landing spot), steel-on-concrete abuse from dock plates, and concentrated water/salt at the pit. A parking-lot spec slab fails inside five years at a loading dock; the dock spec is different by design.

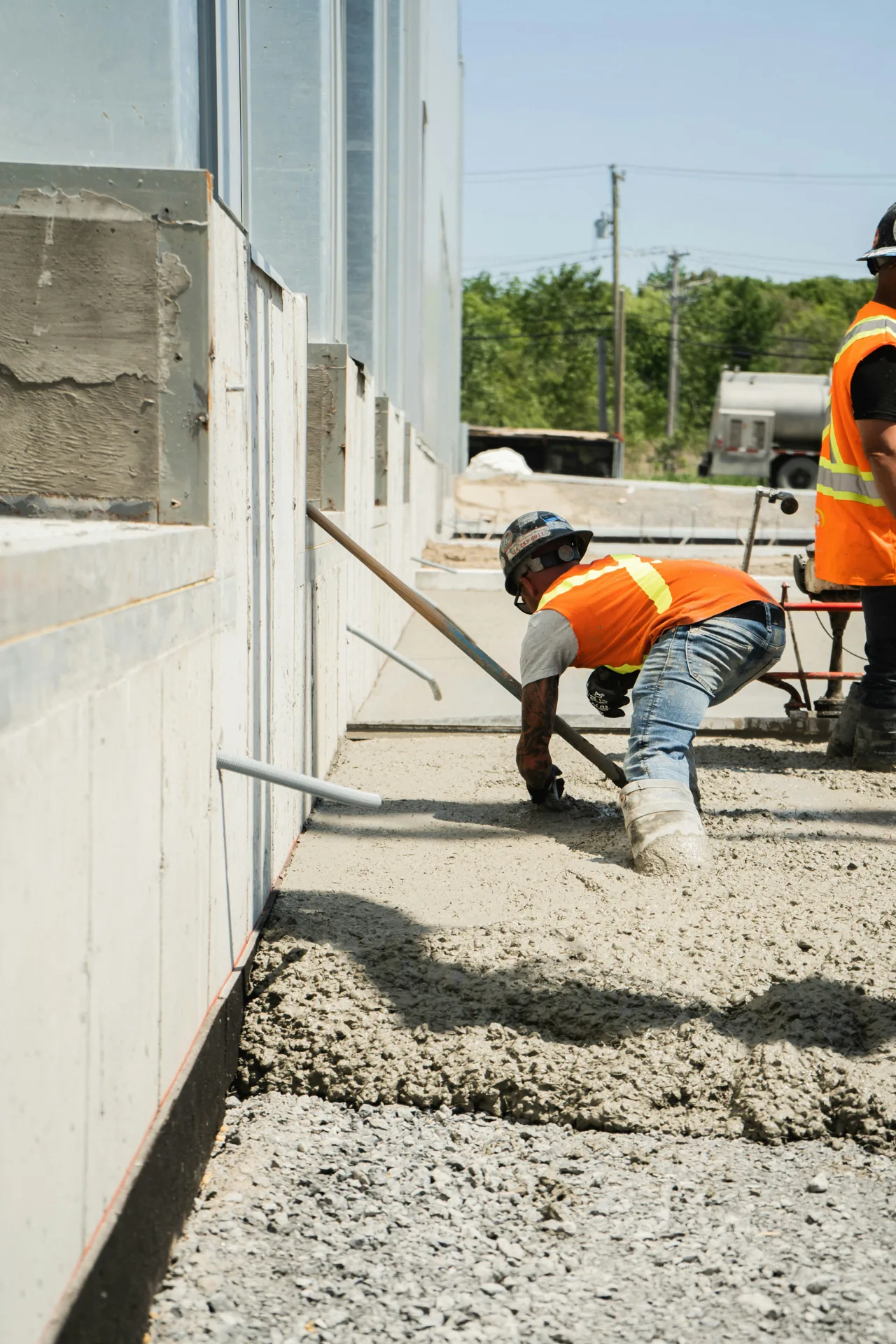

It protects the leading edge of the dock from the steel dock plates that drag across it during loading. Without it, the concrete edge spalls within a year of regular dock-plate use. The angle is cast into the pour with embed studs that anchor it permanently.
Yes. We coordinate with the dock-leveler supplier to set their embeds (anchor bolts, channels) at the right positions before the pour. Adding them after the pour is messy and rarely fits as cleanly; integrating them up front is the right way.
Always away from the pit. The slope drains meltwater and rain off the apron toward the parking lot or a catch basin, never into the pit which catches enough water on its own from the open dock door. Reverse-sloping into the pit is the most common failed-dock pattern we see.
Depends on the cause. Localised spalling at the edge with a sound slab beneath, sectional repair plus a steel edge retrofit works. Systemic failure from wrong original engineering (too-thin apron, no reinforcement, reverse slope), a new dock is the honest answer.
Client reviews
What Laval Operations Say About Their Loading Docks
Replaced a dock that had failed at six years. New apron engineered for our truck loads, steel edge angle cast in, sloped away from the pit. Three years in, zero spalling. Built to last this time.
X. L.
Logistics Manager, Laval
★★★★★
They identified the original dock was reverse-sloped into the pit, which was the cause of the failure. New dock slopes away. Pit stays dry, edge intact, trucks back in without abuse.
Y. L.
Warehouse Director, Montreal
★★★★★
Coordinated with our dock-leveler supplier to set the embeds in the new pour. Leveler dropped in cleanly afterward, no improvisation needed. Real trade coordination.
Y. I.
Industrial Facility Manager, Terrebonne
★★★★★
Edge repair on three docks instead of full replacement. They were honest that the slab beneath was sound, only the edge needed work. Added steel angles to all three, no spalling since.
Q. H.
Distribution Center Operations, Longueuil
From the blog
Concrete Guides & Articles
Practical reading on planning, finishes and caring for concrete in Laval.
Tell us the truck types, whether this is new construction or repair, and any dock-leveler or scheduling details, and we will assess and quote in writing within one business day.
